LatBot: Distilling Universal Latent Action for Vision-Language-Action Models

Zuolei Li1,2†, Xingyu Gao1,2✉, Xiaofan Wang1,2† Jianlong Fu3
† Work conducted during internship at Microsoft Research ✉ Corresponding author
1 The Institute of Microelectronics, CAS 2 University of Chinese Academy of Sciences 3 Microsoft Research
{lizuolei24, wangxiaofan24}@ime.ac.cn gxy9910@gmail.com jianf@microsoft.com
Paper arXiv Code Coming Soon 🤗 Model Coming Soon

Franka Robot 10-Shot Demonstrations Results

Dip the brush in the water

Put the pan in the oven

Put the green block into the corresponding slot

Put the yellow block into the corresponding slot

Pick up the blue cup
Pick up the red cup

Close the oven

Dual-Arm Aloha Robot Results

Push the red button with the right gripper

Pull the black wire

Turn the knob to position 1

Abstract

Learning transferable latent actions from large-scale object manipulation videos can significantly enhance generalization in downstream robotics tasks, as such representations are agnostic to different robot embodiments. Existing approaches primarily rely on visual reconstruction objectives while neglecting physical priors, leading to sub-optimal performance in learning universal representations.

To address these challenges, we propose a Universal Latent Action Learning framework that takes task instructions and multiple frames as inputs, and optimizes both future frame reconstruction and action sequence prediction. Unlike prior works, incorporating action predictions (e.g., gripper or hand trajectories and orientations) allows the model to capture richer physical priors such as real-world distances and orientations, thereby enabling seamless transferability to downstream tasks. We further decompose the latent actions into learnable motion and scene tokens to distinguish the robot’s active movements from environmental changes, thus filtering out irrelevant dynamics.

By distilling the learned latent actions into the latest VLA models, we achieve strong performance across both simulated (SIMPLER and LIBERO) and real-world robot settings. Notably, with only 10 real-world trajectories per task collected on a Franka robot, our approach successfully completes all five challenging tasks, demonstrating strong few-shot transferability in robotic manipulation.

Our New Pipeline for Latent Action Learning

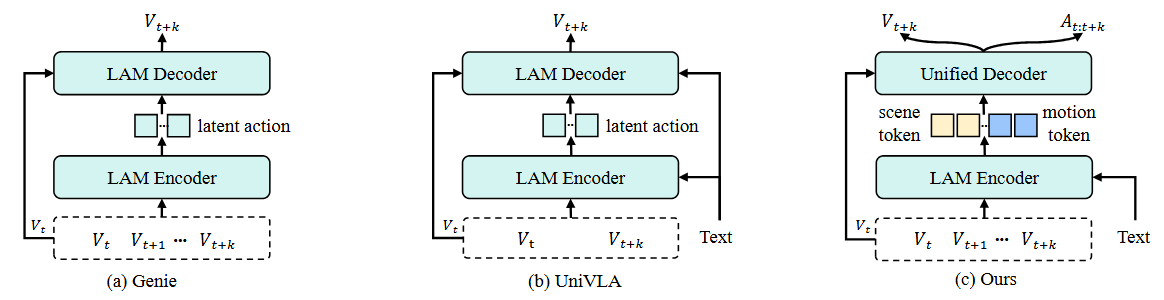

HALO Model Architecture

  • ⚡ Disentangled Latent Action Space: We separate robot-induced motion from environment dynamics using learnable scene and motion tokens, reducing task-irrelevant noise.
  • ⚡ Action-Optimized Latent Learning: We learn latent actions through action prediction, enabling them to encode physical priors and transfer seamlessly to downstream tasks.
  • ⚡ Instruction & Multi-Frame Guided Learning: We combine language instructions with multi-frame cues, where the language can capture task-relevant motions and multi-frame inputs can capture motion trends, resulting in more precise latent actions.

Model Architecture

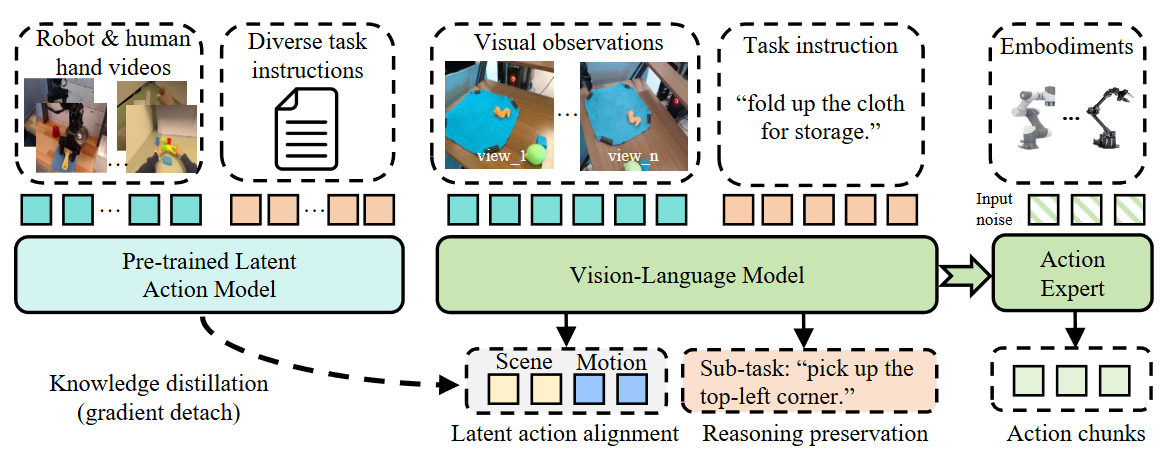

Attention Mechanism

By optimizing the VLMs with latent action alignment loss and reasoning preservation loss, we distill generalizable action representations learned from both robot and human hand demonstration videos, while simultaneously maintaining sub-task planning capabilities. This is followed by an action expert module for continuous action prediction.

Experimental Results

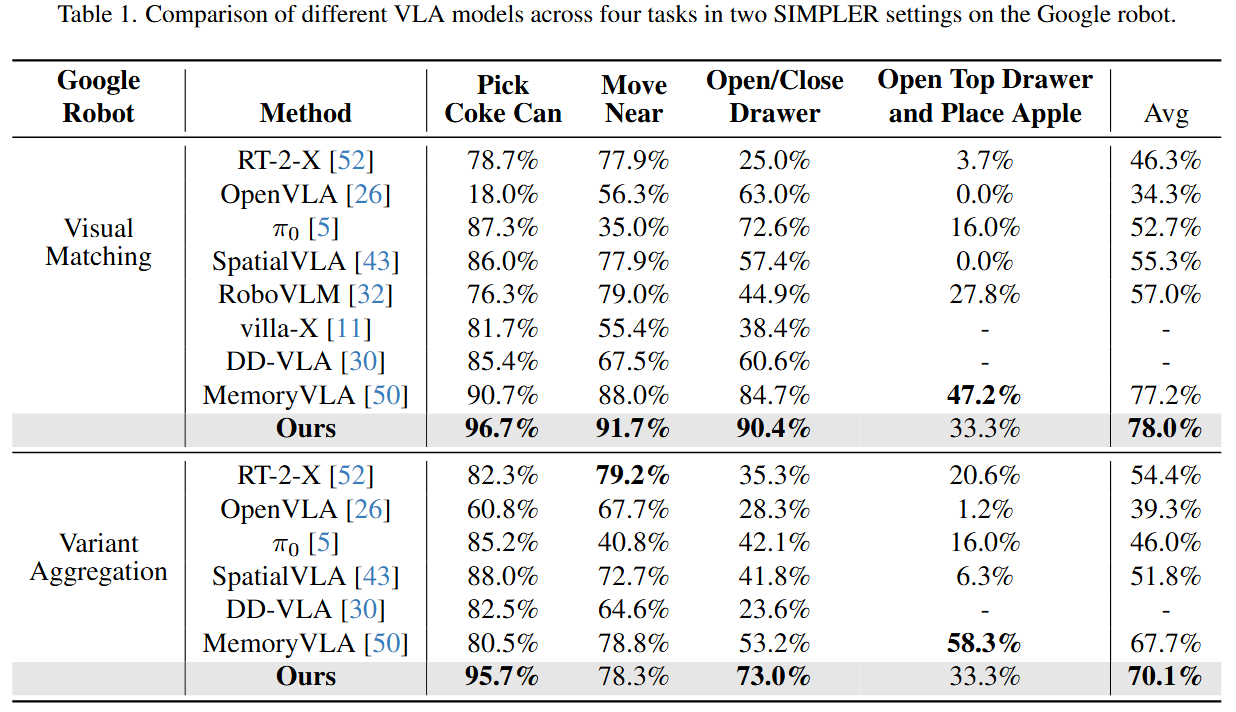

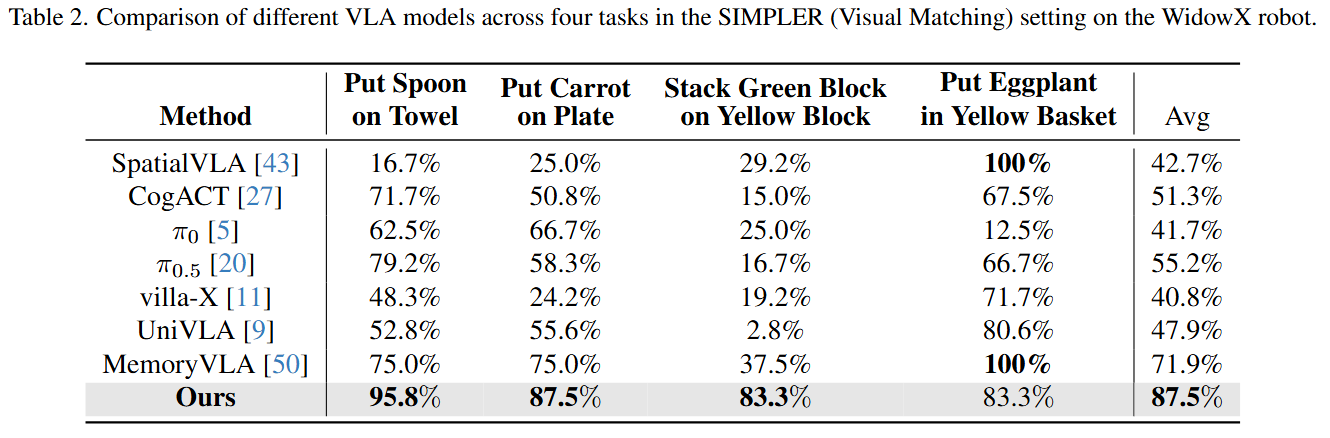

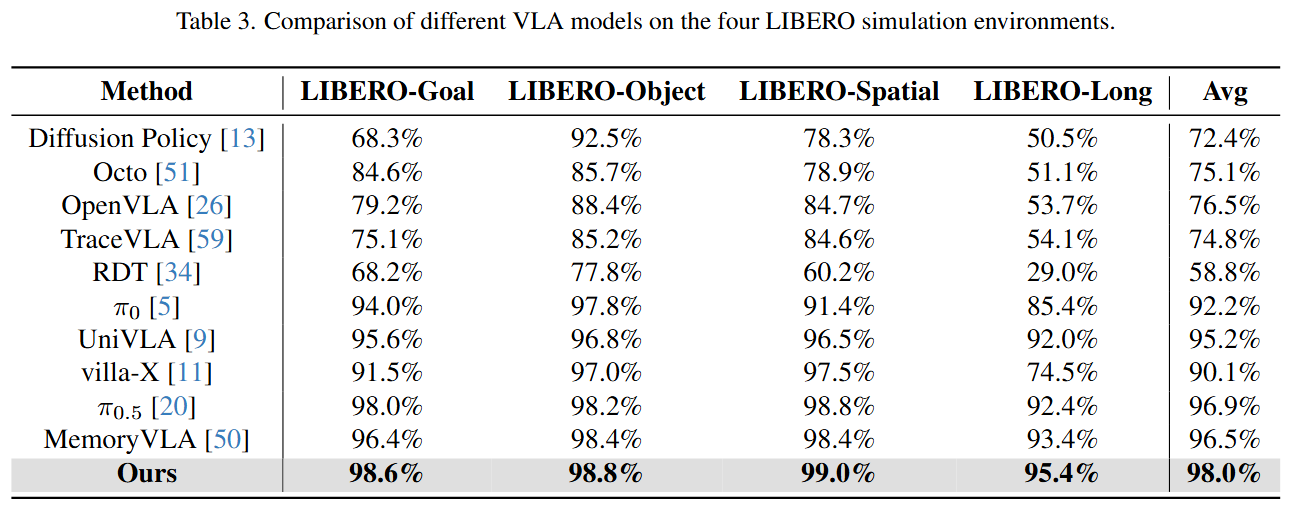

table of simpler fractal results table of simpler bridge results table of libreo results
The results show that our method surpasses existing VLA models, such as \( \pi_0 \) and \( \pi_{0.5} \), across multiple simulation environments, including SIMPLER and LIBERO, demonstrating the effectiveness of latent action distillation.

Simulation Examples

Libero Tasks

Put the white mug on the left plate and put the yellow and white mug on the right plate

Put the black bowl in the bottom drawer of the cabinet and close it

Put both the alphabet soup and the cream cheese box in the basket

Open the top drawer and put the bowl inside

Put the yellow and white mug in the microwave and close it

Turn on the stove and put the moka pot on it

SIMPLER Tasks

Move 7up can near apple

Open bottom drawer

Open top drawer and put the apple.

Stack green block on yellow block

Put the eggplant in yellow basket

Put the carrot on the plate

The Distilled VLM Benefits from Latent Actions

Note: We distill latent actions from the latent action model into the vision-language model (VLM) of the vision-language-action (VLA) model (e.g., \( \pi_{0.5} \)) and compare it with the original VLM of the VLA on real-world tasks.

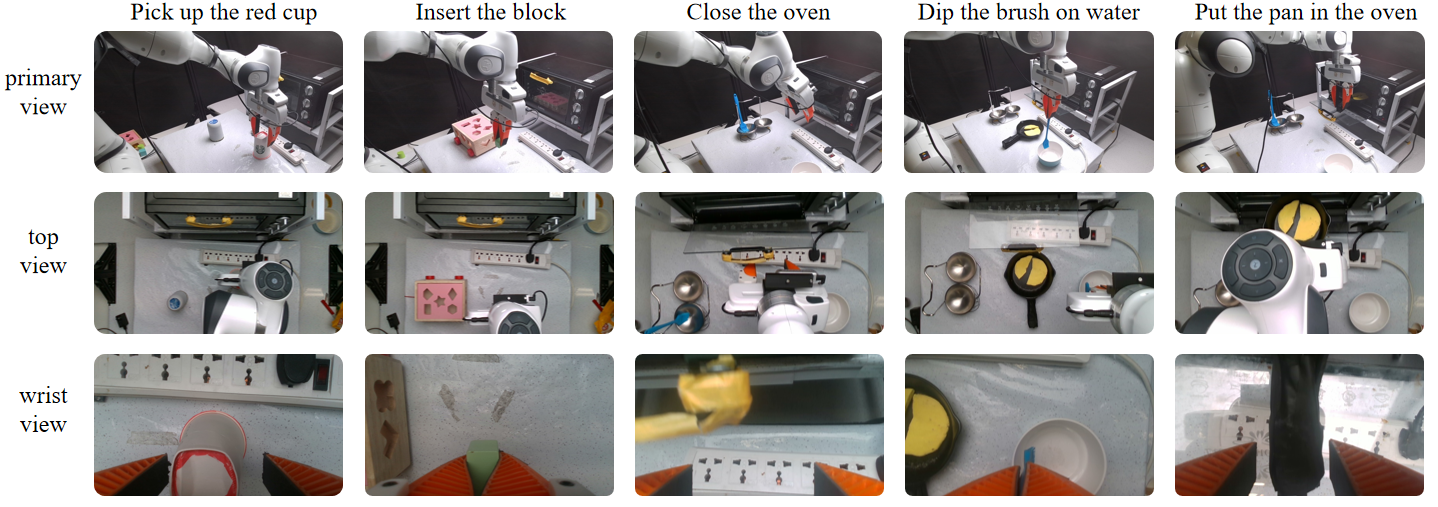

Real Robot Tasks

Tasks include pick-up, insertion, and other manipulation skills that demand both precise translational control and rotational motions.

Attention Heat Map

We visualize the VLM’s attention maps between the final text token and the visual features for both \( \pi_{0.5} \) and our model across various real-robot tasks, and observe that latent-action distillation significantly strengthens the model’s spatial understanding.

BibTeX


    @article{li2025distilling,
      title={LatBot: Distilling Universal Latent Actions for Vision-Language-Action Models},
      author={Li, Zuolei and Gao, Xingyu and Wang, Xiaofan and Fu, Jianlong},
      journal={arXiv preprint arXiv:2511.23034},
      year={2025}
    }
